Glossary

Use this comprehensive glossary to define terms commonly used in the alternative fuels and advanced vehicles industry. If you have questions about specific technologies or fuels, contact the Technical Response Service at 1-800-254-6735.

· A · B · C · D · E · F · G · H · I · K · L · M · N · O · P · R · S · T · V · W · Y ·
· A ·

Back to Top

Advanced Technology Vehicles

A vehicle that combines new engine, power, or drivetrain systems to significantly improve fuel economy. This includes hybrid power systems and fuel cells, as well as some specialized electric vehicles.

Aftertreatment system

This system is comprised of multiple components, which are responsible for filtering the engine exhaust gas to meet tailpipe emission requirements. After the exhaust gas of the engine is filtered through the diesel particulate filter (DPF) and the diesel oxidation catalyst to reduce particulate matter, diesel exhaust fluid (DEF) is injected into the exhaust gas mixture, then reduced to nitrogen and water by chemical conversion within the selective catalytic reducer (SCR) before being released into the atmosphere via the vehicle's tailpipe.

Alternating Current

An electric current that reverses its direction many times a second at regular intervals.

Alternative Fuels

The Energy Policy Act of 1992 defines an alternative fuel as:

  • Biodiesel (B100)
  • Natural gas and liquid fuels domestically produced from natural gas
  • Propane (liquefied petroleum gas)
  • Electricity
  • Hydrogen
  • Blends of 85% or more of methanol, denatured ethanol, and other alcohols with gasoline or other fuels
  • Methanol, denatured ethanol, and other alcohols
  • Coal-derived, domestically produced liquid fuels
  • Fuels (other than alcohol) derived from biological materials
  • P-Series fuels

Alternative Fuel Vehicles

A dedicated, flexible fuel, or dual-fuel vehicle designed to operate on at least one alternative fuel.

Anaerobic Digestion

Anaerobic digestion is series of processes in which microorganisms break down biodegradable material in the absence of oxygen.

ASTM International

A nonprofit organization that develops and delivers international standards. ASTM standards, test methods, specifications, and procedures are recognized as definitive guidelines for fuel quality.

Autoignition Temperature

The lowest temperature at which a flammable gas vapor will ignite spontaneously, without a source of ignition, after several minutes of exposure to sources of heat.

Available Stations

The station is in service and available for drivers to use.

· B ·

Back to Top

Battery

The battery provides electricity to start the engine and power vehicle electronics/accessories.

Battery (all-electric auxiliary)

In an electric drive vehicle, the auxiliary battery provides electricity to power vehicle accessories.

Battery (auxiliary)

In an electric drive vehicle, the low-voltage auxiliary battery provides electricity to start the car before the traction battery is engaged; it also powers vehicle accessories.

Battery pack

This high-voltage battery stores energy generated from regenerative braking and provides supplemental power to the electric traction motor.

Biochemical

Chemical reactions in living organisms.

Biochemical Conversion

Using enzymes and catalysts to change biological substances chemically to produce energy products. An example is digestion of organic wastes or sewage by microorganisms to produce methane.

Biomass

Plant matter such as trees, grasses, agricultural residue, algae, and other biological material.

Blender Pump

A fuel dispenser that draws fuel from two separate storage tanks and can dispense preprogrammed blends of those two fuels.

· C ·

Back to Top

Cellulose

The stringy fiber of a plant that is present in plant cell walls composed of long chain polysaccharide of glucose.

Cetane Number

Cetane number relates to the fuels susceptibility to self-ignite. The higher the cetane number, the greater the fuel's tendency to self-ignite.

Charge port

The charge port allows the vehicle to connect to an external power supply in order to charge the traction battery pack.

Clean Air Act Amendments of 1990

Amendments to the Clean Air Act of 1970 creating two gasoline standards to reduce vehicle emissions in highly polluted cities by requiring gasoline to contain cleaner-burning additives, such as ethanol.

Common NEMA Outlets

OutletDescription


NEMA 5-15
The NEMA 5-15 outlet is the standard 15 amp, 125V outlet found in most homes. This outlet is normally used to power home appliances.


NEMA 5-20
The NEMA 5-20 outlet is a 20 amp, 125V outlet commonly found in homes and offices.


NEMA 14-50
The NEMA 14-50 outlet is rated at 50 amps and 240V. These outlets are commonly used to power recreational vehicles (RVs) at RV parks or dryers in homes. Some electric vehicles have a cordset available for use with this outlet.

· D ·

Back to Top

DC/DC converter

This device converts higher-voltage DC power from the traction battery pack to the lower-voltage DC power needed to run vehicle accessories and recharge the auxiliary battery.

Diesel exhaust fluid (DEF) tank

This tank holds diesel exhaust fluid, an aqueous urea solution, which is injected into the exhaust stream during selective catalytic reduction.

Diesel exhaust fluid filler

This port is for filling the diesel exhaust fluid tank.

Diesel oxidation catalyst (DOC)

This device uses a chemical process to break down pollutants in the exhaust stream, converting them into less harmful components.

Diesel particulate filter (DPF)

This device removes diesel particulate matter or soot from the exhaust gases of a diesel engine.

Direct Current

An electric current that flows in only one direction.

· E ·

Back to Top

E85

A high-level gasoline-ethanol blend containing 51% to 83% ethanol, depending on geography and season.

Electric generator

Generates electricity from the rotating wheels while braking, transferring that energy back to the traction battery pack. Some vehicles use motor generators that perform both the drive and regeneration functions.

Electric Grid

An interconnected system that maintains an instantaneous balance between supply and demand (generation and load) while moving electricity from generation source to customer.

Electricity

Electric current used as a power source. Electricity can be produced from a variety of feedstocks, including oil, coal, nuclear, hydro, natural gas, wind, and solar.

Electricity Prices

Electricity prices are based on residential rates for light-duty vehicles because a majority of vehicle charging happens at home. These prices are lower than at most public or commercial medium/heavy-duty fleet charging stations because they do not include costs for infrastructure development, maintenance, operation, electric demand charges, and network/host fees and profits. Residential prices also exclude fees meant to replace motor fuel taxes that 26 states have adopted and more are developing (per Consumer Reports). As of 2019, 25 states collect fees from plug-in electric vehicle owners for road use and other transportation costs traditionally covered by fuel taxes. These fees range by state from $50 to $200 per year (per Consumer Reports). Prices for electricity start in 2011 when the availability of commercial vehicles and charging stations became significant in the market.

Electric traction motor

Using power from the traction battery pack, this motor drives the vehicle's wheels. Some vehicles use motor generators that perform both the drive and regeneration functions.

Electric traction motor (FCEV)

Using power from the fuel cell and the traction battery pack, this motor drives the vehicle's wheels. Some vehicles use motor generators that perform both the drive and regeneration functions.

Electrolysis

Electrolysis is a method by which an electric current splits water into hydrogen and oxygen. If the electricity used is from renewable sources, such as solar or wind, the resulting hydrogen will be considered renewable as well.

Electronic control module (ECM)

The ECM controls the fuel mixture, ignition timing, and emissions system; monitors the operation of the vehicle; safeguards the engine from abuse; and detects and troubleshoots problems.

Electronic control module (ECM) - (gasoline)

The ECM controls the gasoline mixture, ignition timing, and emissions system; monitors the operation of the vehicle; safeguards the engine from abuse; and detects and troubleshoots problems.

Electronic control module (ECM) - (natural gas)

In a bi-fuel natural gas configuration, the natural gas ECM communicates with the gasoline ECM and controls the natural gas mixture, ignition timing, and emissions system; monitors the operation of the vehicle; safeguards the engine from abuse; and detects and troubleshoots problems.

Electronic control module (ECM) - (propane)

In a bi-fuel propane configuration, the propane ECM communicates with the gasoline ECM and controls the propane mixture, ignition timing, and emissions system; monitors the operation of the vehicle; safeguards the engine from abuse; and detects and troubleshoots problems.

Emission Control Technologies

Equipment used in diesel-powered vehicles to reduce exhaust emissions, such as particulate matter and nitrogen oxides. New engines and vehicles can be designed with these technologies, and used engines can be retrofitted to use this equipment.

Energy Policy Act of 1992

Passed by Congress to enhance U.S. energy security by requiring federal, state, and alternative fuel provider fleets to implement petroleum-reduction measures. Learn more about EPAct Transportation Regulatory Activities.

Exhaust system

The exhaust system channels the exhaust gases from the engine out through the tailpipe. A three-way catalyst is designed to reduce engine-out emissions within the exhaust system.

· F ·

Back to Top

Feedstocks

Any material converted to another form of fuel or energy product. An example is using cornstarch to produce ethanol.

First- and last-mile gap

A term used in the transportation community to describe the distance between the start or end of an individual transit trip, which must often be bridged by walking, driving, or taking some other mode of transit.

Flash Point

The minimum temperature at which a liquid gives off vapor within a test vessel in sufficient concentration to form an ignitable mixture with air near the surface of the liquid.

Float assembly

The float assembly monitors the fuel level in a tank.

Flow Improvers

A chemical used in fuel to reduce friction and increase performance.

Ford Qualified Vehicle Modifiers

Ford has established a rigorous qualification program for advanced fuel vehicle modifiers. These guidelines are intended to provide guidance, modification recommendations, and engine operating specifications required to ensure customer satisfaction and reliability in line with Ford Motor Company standards. On-site assessments at each QVM location assure conformance to a high standard of manufacturing, assembly, workmanship, and customer service.

Fuel cell stack

An assembly of individual membrane electrodes that use hydrogen and oxygen to produce electricity.

Fuel filler

A nozzle from a fuel dispenser attaches to the receptacle on the vehicle to fill the tank.

Fuel filler (gasoline)

This is a filler or "nozzle" used to add gasoline to the tank.

Fuel filler (natural gas)

A filler or "nozzle" is used to add natural gas to the tank.

Fuel filler (propane)

This is a filler or "nozzle" used to add propane to the tank.

Fuel filter

This filter traps contaminants and other byproducts to prevent them from clogging critical fuel system components, such as fuel injectors.

Fuel injection system

This system introduces fuel into the engine's combustion chambers for ignition.

Fuel injection system (gasoline)

This system inserts gasoline into the engine's combustion chambers for ignition.

Fuel injection system (natural gas)

This system introduces fuel into the engine's combustion chambers for ignition.

Fuel injection system (propane)

This system inserts propane into the engine's combustion chambers for ignition.

Fuel line

A metal tube or flexible hose (or a combination of these) transfers fuel from the tank to the engine's fuel injection system.

Fuel line (gasoline)

A metal tube or flexible hose (or a combination of these) allows for transferring gasoline from the tank to the engine's fuel injection system.

Fuel line (natural gas)

A metal tube or flexible hose (or a combination of these) allows for transferring natural gas from the tank to the engine's fuel injection system.

Fuel line (propane)

A metal tube or flexible hose (or a combination of these) allows for transferring propane from the tank to the engine's fuel injection system.

Fuel Pathway

A fuel pathway is the combination of a feedstock, production process, and fuel type.

Fuel pump

A pump that transfers fuel from the tank to the engine's fuel injection system via the fuel line.

Fuel selector switch

On bi-fuel vehicles, this dashboard switch allows the driver to select between fuels.

Fuel tank (biodiesel)

A fuel tank stores fuel on board the vehicle until it's needed to power the engine.

Fuel tank (compressed natural gas)

Stores compressed natural gas on board the vehicle until it's needed by the engine.

Fuel tank (diesel)

Stores fuel on board the vehicle until it's needed to power the engine.

Fuel tank (ethanol/gasoline blend)

Stores fuel on board the vehicle to power the engine.

Fuel tank (gasoline)

This tank stores gasoline on board the vehicle until it's needed by the engine.

Fuel tank (hydrogen)

Stores hydrogen gas onboard the vehicle until it's needed by the fuel cell.

Fuel tank (liquefied natural gas)

Stores liquefied natural gas on board the vehicle until it's needed by the engine.

Fuel tank (propane)

This tank stores propane on board the vehicle until it's needed by the engine.

· G ·

Back to Top

Gasoline Gallon Equivalent

The amount of fuel it takes to equal the energy content of one liquid gallon of gasoline where one gasoline gallon equivalent (GGE) equals 114,300 British thermal units (Btu).

Gasoline or Diesel Gallon Equivalent

The amount of fuel it takes to equal the energy content of one liquid gallon of gasoline or diesel where one gasoline gallon equivalent (GGE) equals 114,300 British thermal units (Btu) and one diesel gallon equivalent (DGE) equals 128,700 Btu.

Gross Vehicle Weight Rating

The maximum weight of a vehicle, including curb weight (the weight of the vehicle on its own) and payload (the weight of cargo).

· H ·

Back to Top

Hemicellulose

A major component of plant cell walls comprised of multiple five carbon sugars.

Higher Heating Value

The heating value is the amount of heat released during the combustion of a specific substance, usually a fuel or food. The higher heating value is determined by bringing all the products of combustion back to the original pre-combustion temperature, condensing any water vapor generated. This value assumes the entire water component is liquid in the products of combustion and that heat can be used.

Higher Lubricity

The ability to reduce friction—usually in fuel pumps and fuel injectors.

High pressure regulator

Reduces and regulates the pressure of the fuel exiting the tank, lowering it to an acceptable level required by the engine 's fuel injection system.

· I ·

Back to Top

Immiscible

A property whereby substances do not mix and form a homogenous solution when added together. Biobutanol and water are immiscible because they do not mix well. In contrast, ethanol and water are miscible because their mixture in any proportion always yields a homogeneous solution.

Incremental Price

The additional price of an alternative fuel vehicle over a similar conventional vehicle.

Internal Combustion Engine

A conventional vehicle motor that burns fossil fuel in a chamber in the presence of air.

Internal combustion engine (compression-ignited)

In this configuration, fuel is injected into the combustion chamber and ignited by the high temperature achieved when a gas is greatly compressed.

Internal combustion engine (spark-ignited)

In this configuration, fuel is injected into either the intake manifold or the combustion chamber, where it is combined with air, and the air/fuel mixture is ignited by the spark from a spark plug.

Isomer

Two or more compounds with the same formula but a different arrangement of atoms in the molecule and different properties.

· K ·

Back to Top

Kilowatt Hours

A measurement for electricity use.

· L ·

Back to Top

Last Import Date for Electric Vehicle Charging Networks

For networks with stations imported by CSV, the last import date represents the last day that any station in the network was updated but does not imply that all stations in the network were updated on that day.

Legacy Chargers

Legacy electric charging systems such as inductive paddles. Learn more about types of chargers.

Lignin

A complex polymer that lends rigidity to plant cell walls. It is generally extracted and burned to provide process heat and power to make biofuels.

Load Aggregators

A large group or block (aggregate) of consumers joined together to leverage their combined purchasing power when negotiating rates for energy services.

Lower Heating Value

The heating value is the amount of heat released during the combustion of a specific substance, usually a fuel or food. The lower heating value is determined by subtracting the heat of vaporization of water from the higher heating value for a particular substance, treating any water as a vapor.

Low Rolling Resistance Tires

Tires that have been manufactured to reduce rolling resistance by changing tire shape, material, or tread design.

· M ·

Back to Top

Manual shut off

Allows the vehicle operator or mechanic to manually shut off the fuel supply.

Miles per Gallon of Gasoline Equivalent

Miles per gallon of gasoline equivalent (mpge) represents the number of miles a vehicle can travel using a quantity of fuel with the same energy content as a gallon of gasoline (33 kilowatt-hours).

· N ·

Back to Top

Natural gas fuel filter

Traps contaminants and other byproducts to prevent them from clogging critical fuel system components, such as fuel injectors.

Natural gas sensors

These monitor the pressure of the fuel supply and relay that information to the electronic control module.

Negative Energy Balance

When producing a fuel takes more energy than the amount of energy the fuel provides.

· O ·

Back to Top

Onboard charger

Takes the incoming AC electricity supplied via the charge port and converts it to DC power for charging the traction battery. It also communicates with the charging equipment and monitors battery characteristics such as voltage, current, temperature, and state of charge while charging the pack.

Overfill protection device

This device shuts off the flow of fuel into a fuel tank after 80% capacity has been reached.

Oxygenate

A cleaner-burning additive in a fuel—usually containing hydrogen, carbon, and oxygen. Examples are ethers and alchohols, such as ethanol and methanol.

Oxygenated Fuels

Fuels blended with an additive—usually ether or ethanol—to increase oxygen content, allowing more-thorough combustion for reduced carbon monoxide emissions.

· P ·

Back to Top

Passenger-Miles per Gallon

Pmpg is the vehicle miles per gallon multiplied by the number of passengers traveling in the vehicle.

Petroleum Administration for Defense Districts

The Petroleum Administration for Defense Districts (PADD) are groupings of U.S. states and the District of Columbia. These districts are defined by the U.S. Energy Information Administration and used to report fuel prices.

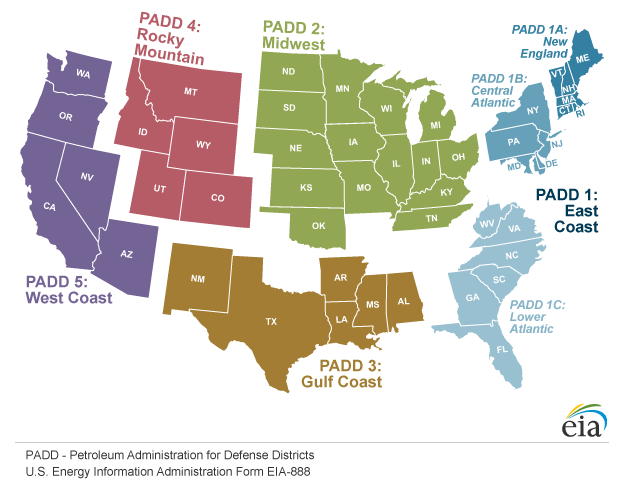

Map of Petroleum Administration for Defense Districts. PADD 1 (East Coast) includes three parts. PADD 1A (New England) includes Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont. PADD 1B (Central Atlantic) includes Delaware, District of Columbia, Maryland, New Jersey, New York, and Pennsylvania. PADD 1C (Lower Atlantic) includes Florida, Georgia, North Carolina, South Carolina, Virginia, and West Virginia. PADD 2 (Midwest) includes Illinois, Indiana, Iowa, Kansas, Kentucky, Michigan, Minnesota, Missouri, Nebraska, North Dakota, Ohio, Oklahoma, South Dakota, Tennessee, and Wisconsin. PADD 3 (Gulf Coast) includes Alabama, Arkansas, Louisiana, Mississippi, New Mexico, and Texas. PADD 4 (Rocky Mountain) includes Colorado, Idaho, Montana, Utah, and Wyoming. PADD 5 (West Coast) includes Alaska, Arizona, California, Hawaii, Nevada, Oregon, and Washington.

PHEV Configuration

Plug-in hybrid electric vehicles (PHEVs) typically use one of two configurations to combine an internal combustion engine with an electric motor.

  • Parallel hybrid operation connects the engine and the electric motor to the wheels through mechanical coupling. Both the electric motor and the engine can drive the wheels directly.

  • Series plug-in hybrids use only the electric motor to drive the wheels. The internal combustion engine is used to generate electricity for the motor.

Positive Energy Balance

When producing a fuel takes less energy than the amount of energy the fuel provides.

Power electronics controller

This unit manages the flow of electrical energy delivered by the traction battery, controlling the speed of the electric traction motor and the torque it produces.

Power electronics controller (FCEV)

This unit manages the flow of electrical energy delivered by the fuel cell and the traction battery, controlling the speed of the electric traction motor and the torque it produces.

Pressure gauge

This gauge measures and displays the fuel pressure within the tank.

Pressure relief valve

This device incorporates a valve to limit the pressure within the fuel tank. If the tank exceeds a preset pressure level, the valve opens and fuel is vented from the tank.

Pump Octane Number

This number represents the ability of a fuel to resist knocking when ignited in the cylinder of an internal-combustion engine. The number here is the average of the research octane number and motor octane number.

· R ·

Back to Top

Regenerative Braking

A feature of hybrid and plug-in electric vehicles that captures energy normally lost during braking by using the electric motor as a generator and storing the captured energy in the battery.

Renewable Fuels Standard

A regulation created under the Energy Policy Act of 2005 and implemented by the U.S. Environmental Protection Agency to ensure transportation fuel sold in the United States contains a minimum volume of renewable fuel.

· S ·

Back to Top

Selective Catalytic Reduction

Selective catalytic reduction (SCR) is a means of converting nitrogen oxides (NOx) into nitrogen (N2) and water (H20). This is done using a reductant, such as urea or ammonia, and a catalyst.

· T ·

Back to Top

Tailpipe Emissions

Emissions produced through fuel combustion during a vehicle's operation.

Tallow

Animal fat that can be used to produce biodiesel.

Tank valve

This primary, manual valve stops fuel from entering or leaving the tank.

Technical Response Service

For assistance with technical questions about alternative fuels and advanced vehicles, email the Technical Response Service at technicalresponse@icf.com or call 1-800-254-6735.

Temporarily Unavailable Stations

The station is temporarily out of service or offline due to maintenance and plans to open again in the future.

Thermal system (cooling)

This system maintains a proper operating temperature range of the engine, electric motor, power electronics, and other components.

Thermal system (cooling) - (FCEV)

This system maintains a proper operating temperature range of the fuel cell, electric motor, power electronics, and other components.

Thermochemical

Heat and pressure-based chemical reactions that produce energy. Through gasification (heating biomass by partial oxidation to produce synthesis gas) and pyrolysis (heating biomass in the absence of oxygen to produce liquid oil), biomass feedstocks can be converted to alcohol and hydrocarbon fuels, chemicals, and power.

Traction battery pack

Stores electricity for use by the electric traction motor.

Transesterification

In this process, the feedstock chemically reacts with an alcohol (usually methanol) in the presence of a catalyst, like lye. The products are glycerin and the biodiesel fuel or FAME (fatty acid methyl esters).

Transmission

The transmission transfers mechanical power from the engine and/or electric traction motor to drive the wheels.

Transmission (electric)

The transmission transfers mechanical power from the electric traction motor to drive the wheels.

Transportation Sector

An energy-consuming sector that consists of all vehicles whose primary purpose is transporting people and/or goods from one physical location to another. Included are automobiles; trucks; buses; recreational vehicles; motorcycles; trains, subways, and other rail vehicles; aircraft; ships, barges, and other waterborne vehicles; and pipelines. Vehicles whose primary purpose is not transportation (e.g., construction cranes and bulldozers, farming vehicles, and warehouse tractors and forklifts) are not included.

· V ·

Back to Top

Vapor Pressure

Vapor pressure is the pressure of the vapor resulting from evaporation of a fuel above a sample of the liquid in a closed container. It is used to measure volatility, an important property of transportation fuels.

Vehicle Categories

A system of classifying vehicles (e.g., passenger cars, commercial vehicles, trailers, off-road vehicles, and special-purpose vehicles).

Vehicle Weight Class

The size of vehicles. Includes light-duty, medium-duty, and heavy-duty vehicles based on their gross vehicle weight rating (the weight of a vehicle on its own plus the weight of cargo).

· W ·

Back to Top

well-to-wheels

Analysis of energy use and emissions from the primary energy source through vehicle operation.

· Y ·

Back to Top

Yellow Grease

Second-hand cooking oil that can be used to produce biodiesel.
